Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Airbag system / Passenger’s airbag module / Removal

CAUTION:

Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION

1. Turn the ignition switch to OFF.

2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

NOTE:

• On CVT models, shift the select lever into “N” before disconnecting the battery ground cable.

• For models with power seat, remove the slide rail installing bolt before disconnecting the ground terminal from the battery sensor.

3. Remove the front seats. Front Seat > REMOVAL

4. Remove the ornament panel - console, cover assembly - front, console box assembly and the panel center LWR. Console Box > REMOVAL

5. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

6. Remove the left and right grille speaker side and the trim panel - front pillar UPR. Upper Inner Trim > REMOVAL

7. Remove the glove box assembly. Glove Box > REMOVAL

8. Remove the center grille assembly. Air Vent Grille > REMOVAL

9. Remove the heater control assembly. Control Panel > REMOVAL

10. Remove the audio assembly or navigation assembly. Audio > REMOVAL

11. Remove the pocket assembly - CTR. External Connection Terminal > REMOVAL

12. Remove the panel - switch and combination meter assembly. Combination Meter > REMOVAL

13. Remove the keyless access CM. Keyless Access CM > REMOVAL

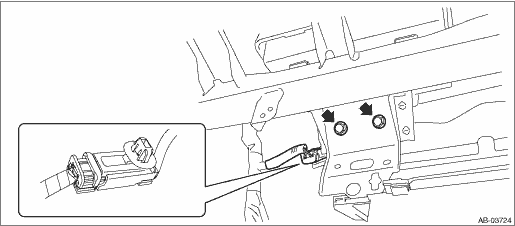

14. Disconnect the bolts and connectors of passenger’s airbag module. Airbag Connector > PROCEDURE

15. Remove the column assembly - steering. Steering Column > REMOVAL

16. Remove the cover side sill - front and the front cover - side sill on the left and right sides. Lower Inner Trim > REMOVAL

17. Remove the body side weather strip - flange front.

18. Remove the panel COMPL - instrument. Instrument Panel Assembly > REMOVAL

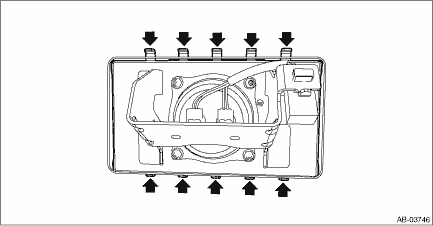

19. Remove the claws, and remove the passenger’s airbag module.

20. For handling of the removed airbag module, refer to “CAUTION”. General Description > CAUTION
