Subaru Legacy BN/BS (2015-2019) Service Manual: Removal
CAUTION: • Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION • If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.

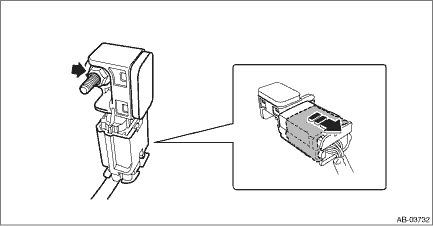

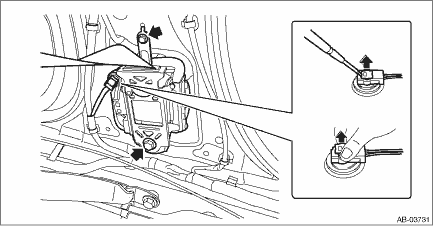

1. Move the seat all the way forward, from which the side airbag sensor is to be removed. NOTE: This is to remove the seat belt retractor assembly. 2. Turn the ignition switch to OFF. 3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE NOTE: For model with the power seat, move the seat to the front-most position before removing the battery ground terminal. 4. Remove the rear seat cushion assembly. Rear Seat > REMOVAL 5. Remove the cover side sill - front, cover side sill - rear, and the trim panel - center pillar LWR. (On the side where the side airbag sensor is removed) Lower Inner Trim > REMOVAL 6. Remove the seat belt retractor. (On the side where the side airbag sensor is removed) (1) Disconnect connector of the pretensioner. Airbag Connector > PROCEDURE (2) Remove the bolt to remove the seat belt retractor.
7. Remove the nuts and then remove the side airbag sensor. Airbag Connector > PROCEDURE
|
Installation
CAUTION:If the hook - rear seat is disconnected from the vehicle body, make sure to replace the hook - rear seat with a new part to prevent the decline of the fixed force of the seat.1. Before install ...
