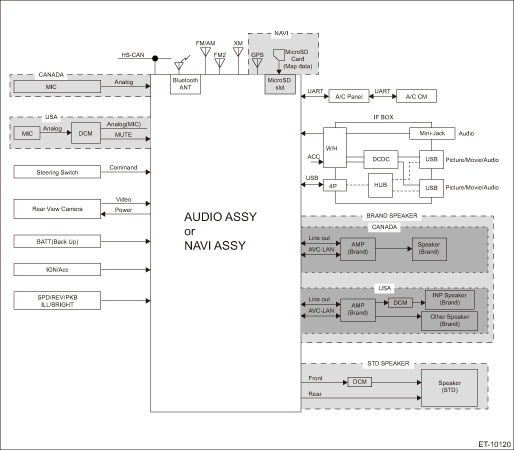

Subaru Legacy BN/BS (2015-2019) Service Manual: System block diagram

Subaru Legacy BN/BS (2015-2019) Service Manual / Infotainment system (diagnostics) / Control module i o signal / System block diagram

Electrical specification

1. NAVIGATION UNIT OR AUDIO (7-INCH DISPLAY)*1:Models with navigation system • Power supply and speaker output terminalTerminal No.ContentsMeasuring conditionMeasurement valueNote(i35) or (i8 ...
