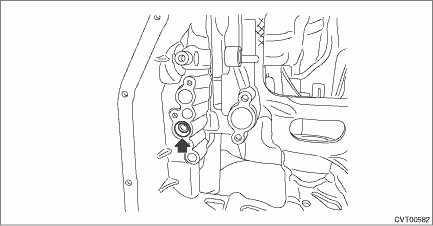

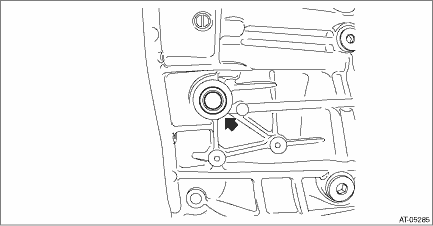

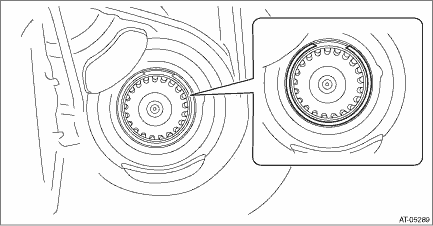

1. Install the CVTF filter. NOTE: • Use a new CVTF filter. • Apply CVTF to the CVTF filter. • Make sure that the CVTF filter does not protrude from the transmission case. 2. Using the ST, install the oil seal.

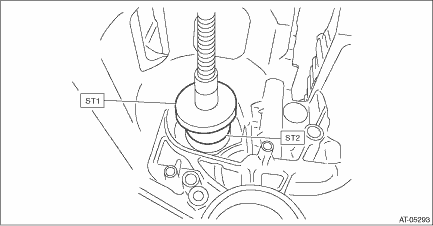

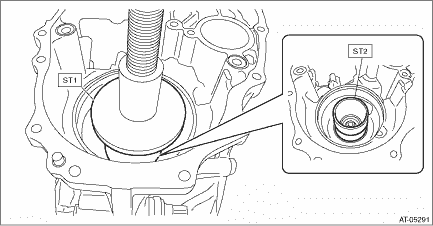

3. Using ST1 and ST2, install the ball bearing on the reduction gear side. NOTE: Use a new ball bearing.

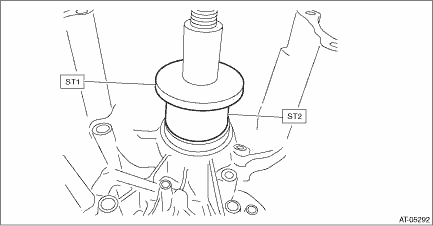

4. Using ST1 and ST2, install the roller bearing on primary pulley side. NOTE: • Use a new roller bearing. • Make adjustment so that the press gets in contact with the center of ST2.

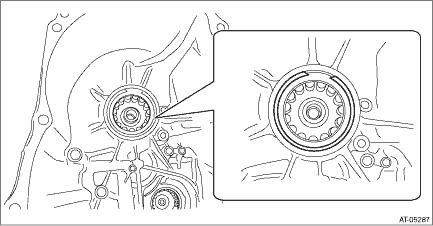

5. Install the snap ring on primary pulley side. NOTE: Use new snap rings. 6. Using ST1 and ST2, install the roller bearing on secondary pulley side. NOTE: • Use a new roller bearing. • Make adjustment so that the press gets in contact with the center of ST2.

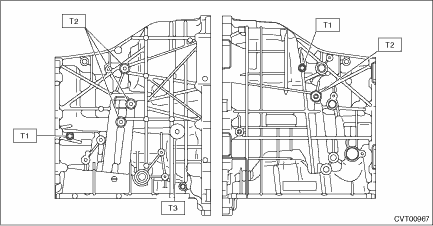

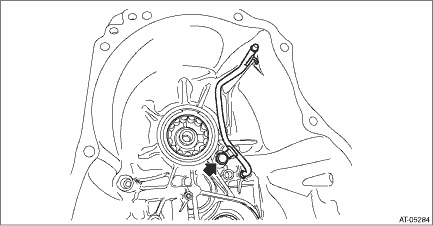

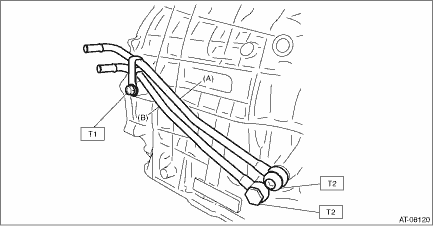

7. Install the snap ring on secondary pulley side. NOTE: Use new snap rings. 8. Install all plugs. NOTE: Use new gaskets and O-rings. Tightening torque: T1: 13 N·m (1.3 kgf-m, 9.6 ft-lb) T2: 25 N·m (2.5 kgf-m, 18.4 ft-lb) T3: 35 N·m (3.5 kgf-m, 25.8 ft-lb) 9. Install the lubrication pipe and O-ring. NOTE: • Use new O-rings. • Apply CVTF to the O-rings. Tightening torque: 16 N·m (1.6 kgf-m, 11.8 ft-lb) 10. Install the CVTF inlet pipe and CVTF outlet pipe. NOTE: Use a new gasket. Tightening torque: T1: 16 N·m (1.6 kgf-m, 11.8 ft-lb) T2: 40 N·m (4.1 kgf-m, 29.5 ft-lb)
|
