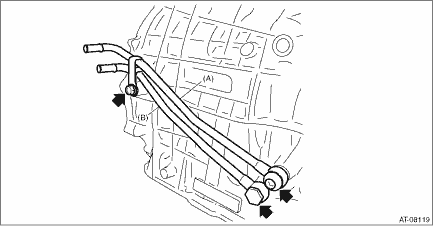

1. Remove the CVTF inlet pipe and CVTF outlet pipe.

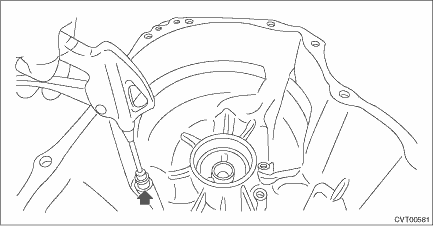

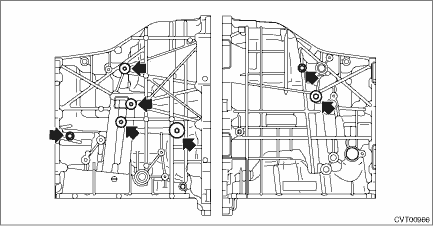

2. Remove all plugs from the transmission case.

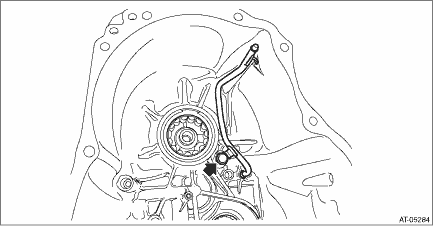

3. Remove the lubrication pipe.

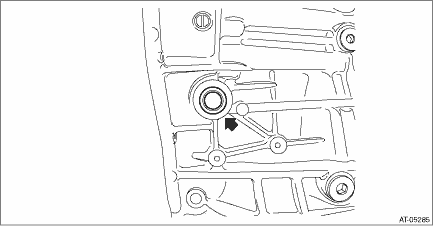

4. Remove the oil seal using a screwdriver wrapped with cloth etc.

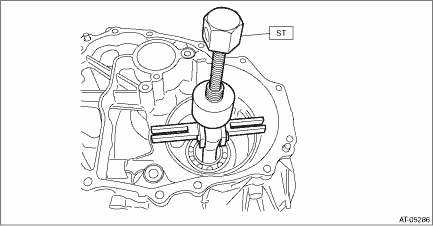

5. Remove the ball bearing from reduction driven gear using ST.

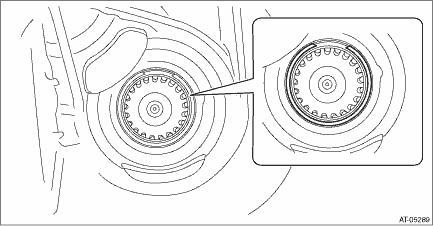

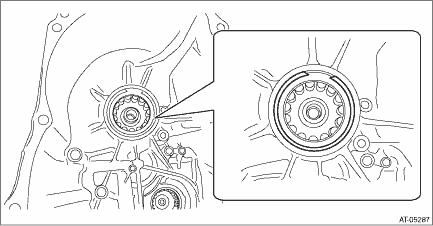

6. Remove the snap ring on primary pulley side.

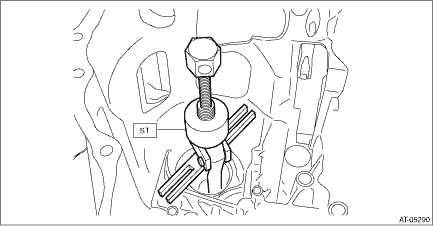

7. Using the ST, remove the roller bearing on primary pulley side. NOTE: Warm up the bearing area of transmission case using a drier or heat gun.
8. Remove the snap ring on secondary pulley side.

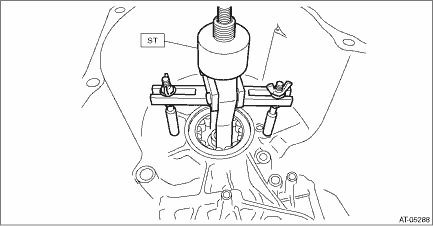

9. Using the ST, remove the roller bearing on secondary pulley side. NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

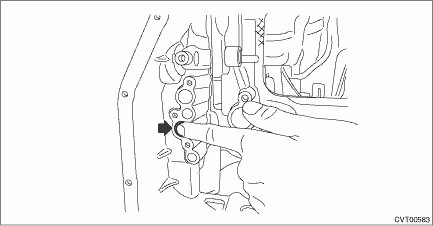

10. Remove the CVTF filter by blowing compressed air through the transmission case hole. NOTE: Hold the CVTF filter with a finger to prevent compressed air from leaking.
|
Inspection
