Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Fuel filler pipe / Assembly

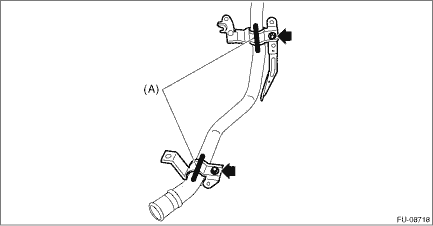

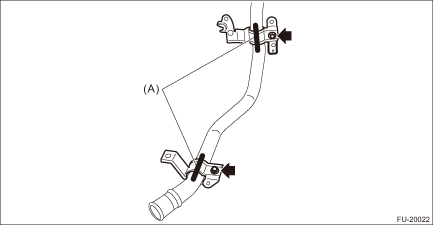

Install the fuel filler pipe bracket to the fuel filler pipe by aligning the alignment marks (A).

Tightening torque:

7.35 N·m (0.7 kgf-m, 5.4 ft-lb)

• With protector

• Without protector

Removal

WARNING:Place “NO OPEN FLAMES” signs near the working area.CAUTION:Be careful not to spill fuel.1. Release the fuel pressure. Fuel > PROCEDURE2. Drain fuel. Fuel > PROCEDURE3. Open the f ...

1. Open the fuel filler lid.2. Insert the fuel filler pipe from inside of the rear fender.3. Install the fuel filler pipe to the vehicle body and connect the evaporation hose (A) to the fuel filler pi ...
