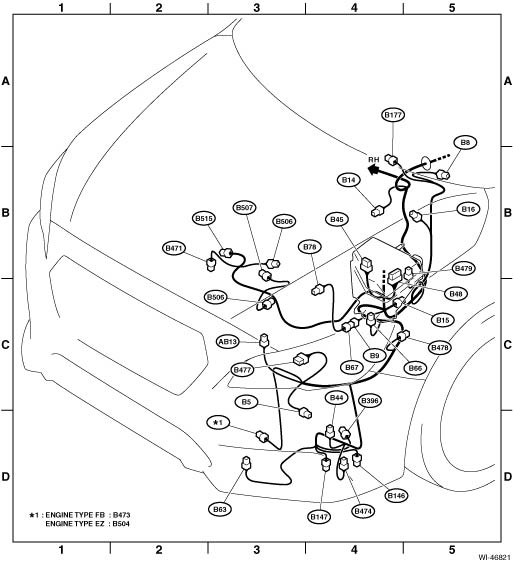

Subaru Legacy BN/BS (2015-2019) Service Manual: Bulkhead wiring harness (in engine compartment) lh location

AB13

2

Y

C-3

Front sub sensor LH

B5

3

Gr

D-3

Daytime running light resistor

B8

5

Gr

B-5

Front wiper motor

B9

2

B

C-4

B67

Battery current & temperature sensor

B14

1

B

B-4

Starter motor

B15

2

Gr

C-5

Front ABS wheel speed sensor LH

B16

2

Gr

B-5

Brake fluid level switch

B44

1

B

D-4

Horn LH

B45

12

B-4

E9

Short connector

B48

45

B

B-4

Relay holder

B63

4

B

D-3

Active grille shutter

B66

8

B

C-4

Relay holder

B67

2

Gr

C-4

B9

Bulkhead wiring harness

B78

2

B

C-4

Battery sensor

B146

2

Gr

D-4

Front washer motor

B147

2

Gr

D-4

Rear washer motor

B177

2

Gr

B-4

Wiper deicer

B396

2

B

D-4

Washer fluid level sensor

B471

3

B

B-3

Generator

B473

2

Gr

D-3

Main fan motor

B474

2

Br

D-4

Front fog light LH

B477

8

Gr

C-3

Front combination light LH (halogen model)

10

Gr

C-3

Front combination light LH (except for halogen model)

B478

5

C-5

J/C

B479

5

B-5

B504

4

B

D-3

F135

Front wiring harness

B506

2

Gr

C-3

Compressor solenoid (engine type EZ)

2

Gr

B-3

Compressor solenoid (engine type FB)

B507

3

B

B-3

Flow sensor

B515

1

—

B-3

Generator terminal B

:White or natural color
