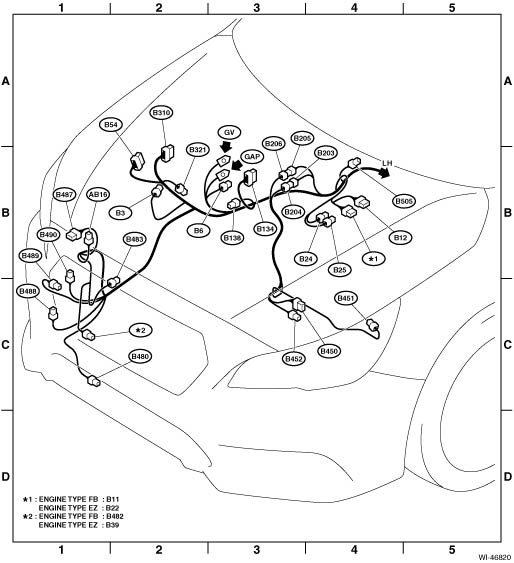

Subaru Legacy BN/BS (2015-2019) Service Manual: Bulkhead wiring harness (in engine compartment) rh location

AB16

2

Y

B-1

Front sub sensor RH

B3

5

B

B-2

Mass air flow & intake air temperature sensor

B6

2

Gr

B-3

Front ABS wheel speed sensor RH

B11

16

Gr

B-4

T14

Transmission cord

B12

5

Gr

B-4

T3

Inhibitor switch (engine type FB)

12

Gr

B-4

T3

Inhibitor switch (engine type EZ)

B22

20

Gr

B-4

T4

Transmission cord

B24

2

Gr

B-4

T1

Back-up light switch (MT model)

B25

2

Br

B-4

T2

Neutral position switch (MT model)

B39

2

Gr

C-1

F28

Front wiring harness

B54

48

B

B-2

TCM

B134

65

B

B-3

ECM

B138

8

B

B-3

J/C

B203

3

Br

B-3

B204

Electrical power steering harness

B204

3

Br

B-3

B203

Bulkhead wiring harness

B205

2

Gr

B-3

B206

Electrical power steering harness

B206

2

Gr

B-3

B205

Bulkhead wiring harness

B310

46

B

B-2

VDC CM

B321

2

B

B-2

Hood switch

B450

10

B

C-3

Power steering CM

B451

4

Gr

C-4

Torque sensor

B452

2

B

C-3

Power steering CM

B480

2

B

C-1

Ambient sensor

B482

2

Gr

C-1

Sub fan motor

B483

5

C-2

J/C

B487

8

Gr

B-1

Front combination light RH (halogen model)

10

Gr

B-1

Front combination light RH (except for halogen model)

B488

2

Br

C-1

Front fog light RH

B489

1

B

C-1

Horn RH

B490

2

B

B-1

Keyless buzzer

B505

3

Gr

B-4

Pressure sensor

:White or natural color
