Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Exhaust(h4do) / Front exhaust pipe / Disassembly

1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. Front Oxygen (A/F) Sensor > REMOVAL Rear Oxygen Sensor > REMOVAL

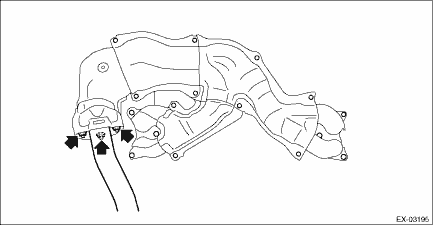

2. Remove the center exhaust pipe from the front exhaust pipe.

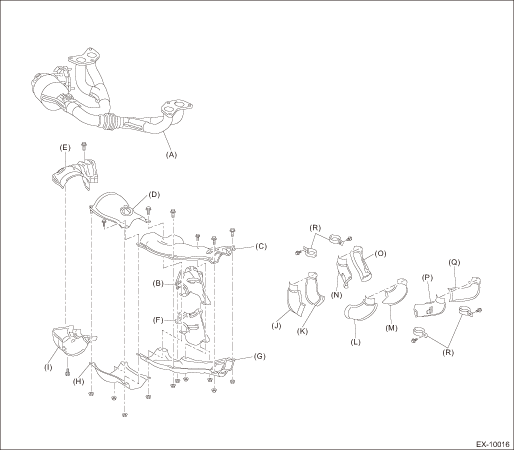

3. Remove each cover from the front exhaust pipe.

(A)

Front exhaust pipe

(G)

Front exhaust pipe lower cover B

(M)

Front exhaust pipe side cover D

(B)

Front exhaust pipe upper cover A

(H)

Front exhaust pipe lower cover C

(N)

Front exhaust pipe side cover E

(C)

Front exhaust pipe upper cover B

(I)

Front exhaust pipe lower cover D

(O)

Front exhaust pipe side cover F

(D)

Front exhaust pipe upper cover C

(J)

Front exhaust pipe side cover A

(P)

Front exhaust pipe side cover G

(E)

Front exhaust pipe upper cover D

(K)

Front exhaust pipe side cover B

(Q)

Front exhaust pipe side cover H

(F)

Front exhaust pipe lower cover A

(L)

Front exhaust pipe side cover C

(R)

Band

Inspection
1. Check the connections and welded parts for exhaust leaks.2. Make sure there are no holes or rusting. ...
