Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Wiper blade / Disassembly

1. FRONT

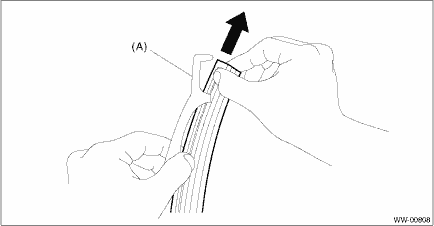

Pull side (A) of the wiper rubber stopper, and remove the rubber assembly - windshield wiper from the blade assembly - windshield wiper.

2. REAR

Slightly pull the top of the rubber assembly - rear wiper from the stopper (A), and pull out completely.
