Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical specification

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Keyless entry system / Electrical specification

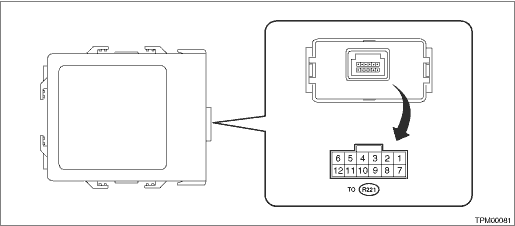

1. KEYLESS ENTRY CONTROL MODULE

Terminal No.

Item

Measuring condition

Standard

4 (IG) ←> Chassis ground

Resistance

IG OFF > ON

0 V > 10 — 14 V

5 (GND) ←> Chassis ground

Resistance

Always

Less than 1 -

6 (+B) ←> Chassis ground

Voltage

Always

10 — 14 V

11 (U-ART com.)

—

Cannot be measured

—

2. BODY INTEGRATED UNIT

Refer to “Control Module I/O Signal” of “BODY CONTROL SYSTEM (DIAGNOSTICS)” section. Control Module I/O Signal > ELECTRICAL SPECIFICATION

Wiring diagram
Refer to “Keyless Entry System” in the wiring diagram. Keyless Entry System > WIRING DIAGRAM ...

Keyless transmitter
...
