NOTE It may be difficult to replace the bulbs.

We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.

Front fog light (if equipped)

  1. Remove the clips.
  2.  Turn over the mud guard.
  3.  Disconnect the electrical connector.

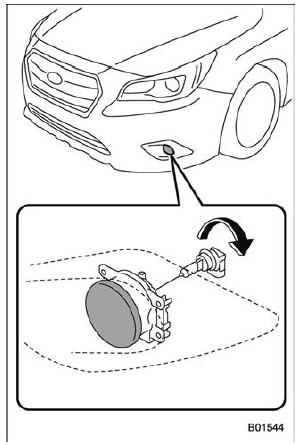

Legacy
Legacy

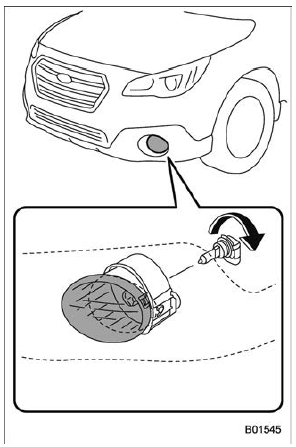

Outback
Outback

  1.  Remove the bulb.
  2.  Replace the bulb with a new one.
  3.  After replacing the bulb, reattach the mud guard.
