1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Remove the air intake duct. Air Intake Duct > REMOVAL

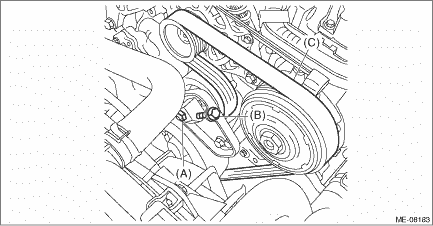

3. Loosen the nut (A).

4. Loosen the bolt (B).

5. Remove the V-belt (C).

Inspection

CAUTION:Check and adjust the V-belt tension so that it is within the specified range. Using the belt with a tension out of the specified range may result in a fault such as the following:• If th ...
