• Check each part for damage or dust.

• Check oil strainer for clogging.

• Measure the resistance of each solenoid.

NOTE:

Measurement should be performed at a temperature of 20°C (68°F).

Solenoid

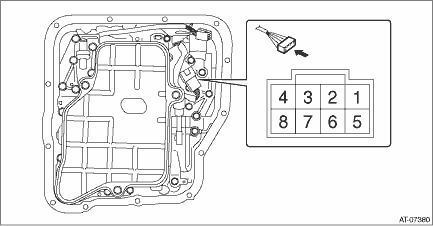

Terminal No.

Standard

(-)

Secondary solenoid

No. 1 — control valve body

Approx. 6.6 -

Lock-up duty solenoid

No. 2 — control valve body

Approx. 12 -

F&R solenoid

No. 3 — control valve body

Approx. 5.3 -

Lock-up ON/OFF solenoid

No. 5 — control valve body

Approx. 16 -

Primary DOWN solenoid

No. 6 — control valve body

Approx. 12 -

Primary UP solenoid

No. 7 — control valve body

Approx. 12 -

AWD solenoid

No. 8 — control valve body

Approx. 3.2 -

Removal
CAUTION:• Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.• Be careful not to spill CVTF on the ...

Installation
1. Clean the mating surface of oil pan and transmission case.2. Make sure that the CVTF filter is installed to the transmission case.NOTE:Make sure that the CVTF filter does not protrude from the tran ...

Other materials:

Dtc u0162 lost communication with audio visual navigation display module
DTC DETECTING CONDITION:No data is received from audio or navigation.TROUBLE SYMPTOM:The audio or navigation does not operate normally.STEPCHECKYESNO1.CHECK PERFORMING OF BASIC DIAGNOSTIC PROCEDURE.Was the basic diagnostic procedure performed up to STEP 8- Diagnostic Procedure with Diagnostic Troubl ...
