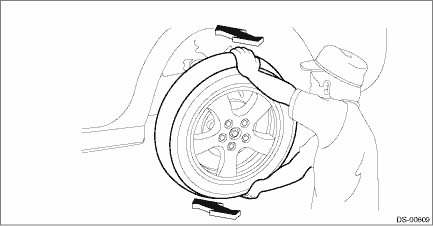

1. Moving the rear tire up and down by hand, check there is no backlash in bearing, and check the wheel rotates smoothly.

CAUTION:

If there is any fault in the bearing, replace the hub unit COMPL - rear axle.

2. Inspect axial play of the hub unit bearing.

(1) Remove the tire and disc rotor.

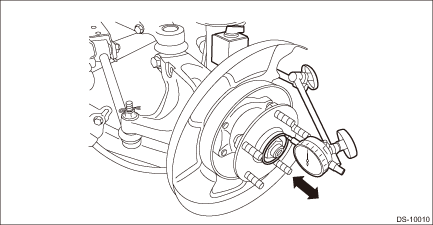

(2) Inspect the lean of axis direction using a dial gauge. Replace the hub unit COMPL if the play exceeds the limit.

Service limit:

Maximum: 0.05 mm (0.0020 in)

Installation

1. Place the back plate - rear brake between the housing assembly - rear axle and the hub unit COMPL - rear axle, and tighten the bolt.CAUTION:• Do not get closer the tool which charged magnetis ...

Disassembly

Using the ST or a hydraulic press, push out the bolt - hub (b) from the hub unit COMPL - rear axle (a).CAUTION:• Be careful not to hammer the bolts - hub. This may deform the hub unit COMPL.&bul ...
