Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Transmission control module (tcm) / Installation

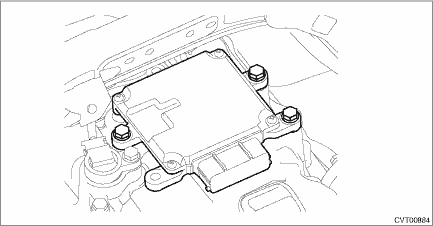

1. Install the TCM.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)

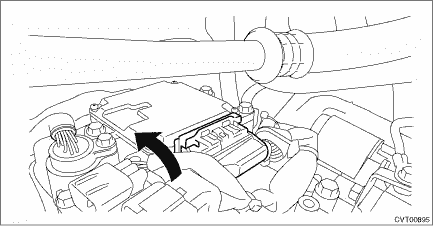

2. Install the harness connector to TCM.

NOTE:

Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

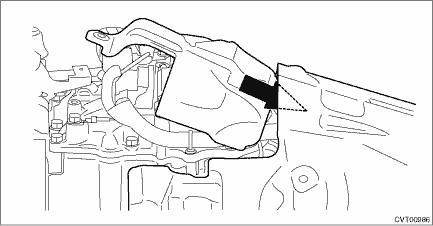

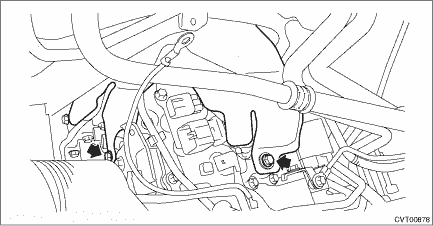

3. Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.

NOTE:

When inserting, be careful that the insulator inside transmission case cover is not turned over.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)

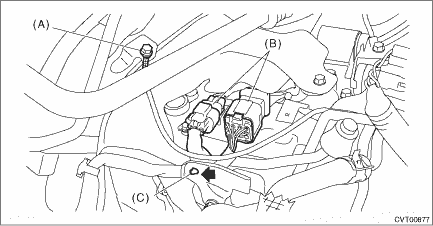

4. Install the harness clip, and connect the following transmission radio ground terminal and transmission harness connector.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

(A)	Transmission radio ground terminal
(B)	Transmission harness connectors
(C)	Harness clip

5. Install the air intake boot assembly. Air Intake Boot > INSTALLATION

6. Connect the ground terminal to battery sensor. NOTE

7. Perform the operation of AT learning mode. Learning Control
