Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Transmission control module (tcm) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the air intake duct. Air Intake Duct > REMOVAL

3. Remove the clip (A), and loosen the clamps (B) and (C).

4. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

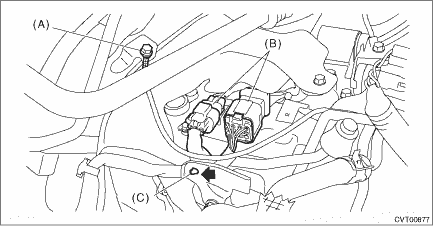

5. Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

(A)	Transmission radio ground terminal
(B)	Transmission harness connectors
(C)	Harness clip

6. Remove the transmission case cover.

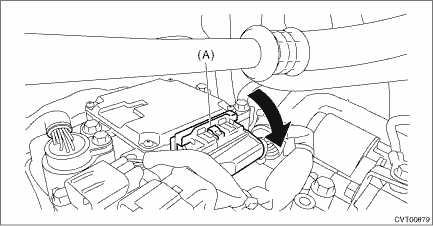

7. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

(A)	Lock button

8. Remove the TCM.

Transmission control module (tcm)

...

Installation

1. Install the TCM.Tightening torque:7 N·m (0.7 kgf-m, 5.2 ft-lb)2. Install the harness connector to TCM.NOTE:Move the lock lever in the arrow direction, and confirm that a clicking sound is he ...
