Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Install the ball joint into the housing assembly - front axle.

CAUTION:

Do not apply grease to the tapered portion of ball stud.

Before tightening, make sure the bottom surface of the housing assembly - front axle and the stepped section of ball joint are in contact.

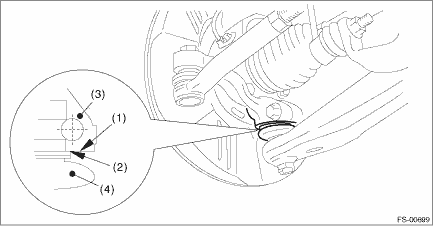

(1)

Bottom surface of housing ASSY - front axle

(3)

Housing ASSY - front axle

(4)

Ball joint boot

(2)

Raised section of ball joint

Tightening torque:

50 N·m (5.1 kgf-m, 36.9 ft-lb)

2. Install the ball joint into front arm.

(1) Connect the ball joint to the front arm.

Tightening torque:

39 N·m (4.0 kgf-m, 28.8 ft-lb)

(2) Tighten the castle nut further up to 60° until the hole in the ball stud is aligned with a slot in castle nut.

(3) Insert a new cotter pin and bend it around the castle nut.

3. Install the front wheels.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

Inspection
1. Check that there is no play by moving the upper and lower portions of front tire in an axial direction with the brake pedal depressed.• Play exists > Replace the ball joint. Front Ball Joint ...
