Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. Install the knock sensor to the cylinder block, and connect the connector (A) to the knock sensor.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

NOTE:

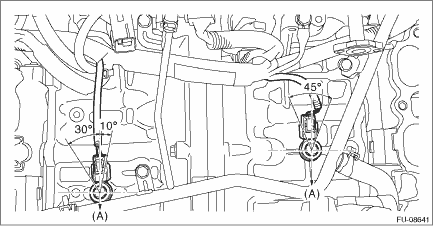

The knock sensor should be installed so that the center of the connector is positioned as shown in the figure relative to the front of engine.

(A)

Front of engine

2. Install the intake manifold. Intake Manifold > INSTALLATION

3. Connect the ground terminal to battery sensor. NOTE

4. Install the collector cover.

Inspection
1. Check that the knock sensor has no deformation, cracks or other damages.2. Measure the resistance between knock sensor terminals.Terminal No.Standard1 and 2560±28 k- ...
