Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Knock sensor / Inspection

1. Check that the knock sensor has no deformation, cracks or other damages.

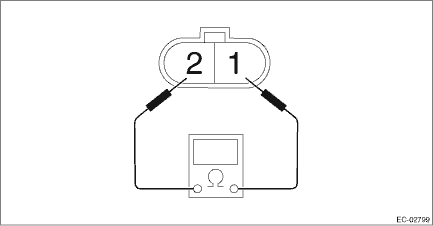

2. Measure the resistance between knock sensor terminals.

Terminal No.	Standard
1 and 2	560±28 k-

Removal

1. Remove the collector cover.(1) Carefully pull up the rear of collector cover at two positions (A).(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.2. ...

Installation

1. Install the knock sensor to the cylinder block, and connect the connector (A) to the knock sensor.Tightening torque:25 N·m (2.5 kgf-m, 18.4 ft-lb)NOTE:The knock sensor should be installed so ...
