Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Keyless buzzer / Installation

CAUTION:

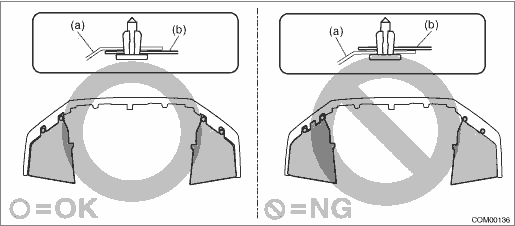

Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

1. Install the keyless buzzer.

2. Connect the ground terminal to battery sensor. NOTE

Inspection

• Using the Subaru Select Monitor, set the volume of the keyless buzzer. User Customizing• Using the Subaru Select Monitor, perform forced operation of the keyless buzzer. User Customizi ...
