Subaru Legacy BN/BS (2015-2019) Owners Manual: iPod

Subaru Legacy BN/BS (2015-2019) Owners Manual / Audio / Audio set / iPod

Audio files on the iPod can be played.

WARNING Do not operate the player's controls or connect the iPod while driving.

Doing so may result in loss of control of your vehicle and cause an accident or serious injury.

CAUTION

Do not leave your portable player in the car. In particular, high temperatures inside the vehicle may damage the portable player.
Do not push down on or apply unnecessary pressure to the portable player while it is connected as this may damage the portable player or its terminal.
Do not insert foreign objects into the port as this may damage the portable player or its terminal.

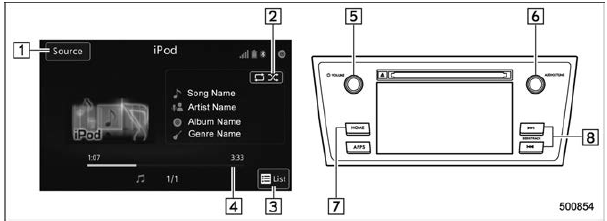

Control screen and audio panel

Control screen and audio panel

No.	Function
1	Select to display the audio source selection screen
2	Select to display the play mode currently selected. Refer to "Select play mode" .
3	Select to display iPod List. Refer to "iPod settings"
4	Shows progress.
5	Turn to adjust volume. Press to turn the audio system on/off.
6	Turn to select a track/file. Press to select an audio source. Refer to "Selecting an audio source" .
7	Press to display the sound setting screen. Refer to "Unit settings" .
8	Press to select a track/file. Press and hold to fast forward/rewind

NOTE

When an iPod is connected using a genuine USB cable, the iPod starts charging its battery.
When an iPod is connected and the audio source is changed to iPod mode, the iPod will resume playing from the same point it was last used.
Depending on the iPod that is connected to the system, certain functions may not be available.
Files/tracks selected by operating a connected iPod may not be recognized or displayed properly.

Connecting the iPod

You can connect an iPod to the vehicle USB port using the USB cable. Refer to "Connecting and disconnecting a USB memory/portable device" .

How to change the source

The iPod operation screen can be reached by the following methods:

Connect an iPod. Refer to "Connecting and disconnecting a USB memory/portable device" .
Select the "USB/iPod" key on the source select screen. Refer to "Selecting an audio source" .

Select play mode

The play mode settings display will appear when play mode key is touched. Select the preferred play mode from the following items.

Icon	Function
	Touch to start 1 track repeat
	Touch to start repeat all.
	Touch to start shuffle all
	Touch to turn off shuffle.
	Touch to start shuffle album
	Return to the control screen.

iPod settings

You can choose the following items from the list screen after touching the tab on the screen.

Icon	Function
	Select to display the play list.
	Select to display tracks list.
	Select to display artists list.
	Select to display albums list
	Select to open other list ("Genres", "Composers", "Audiobooks" and "Podcast").
	Select to open "Genres" list.
	Select to open "Composers" list
	Select to open "Audiobooks" list
	Select to open "Podcasts" list.
