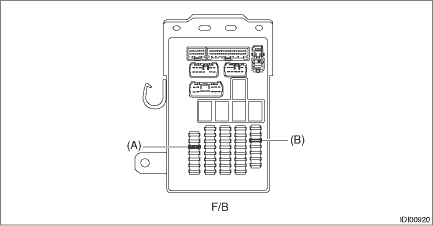

Fuse & relay box (F/B)	Fuse 7.5 A (combination meter)	(A)
Fuse & relay box (F/B)	Fuse 7.5 A (combination meter)	(B)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit

Inspection

1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.NOTE:If the fuse is blown again, check the system wiring harness. ...
