1. FRONT ANTENNA

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the cover assembly - front and the console box assembly. Console Box > REMOVAL

3. Remove the panel center assembly. Center Console > REMOVAL

4. Remove the console front duct. Heater Duct > REMOVAL

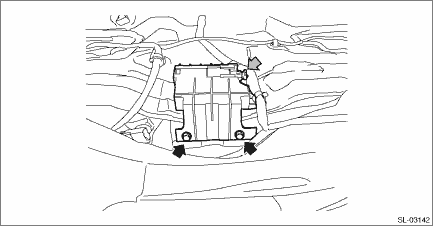

5. Disconnect the connector and remove the front antenna assembly - interior.

2. CENTER ANTENNA

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the rear seat cushion assembly. Rear Seat > REMOVAL

3. Remove the center antenna assembly - interior.

NOTE:

Do not remove the antenna assembly from the cover. If removed, the antenna assembly and cover mounting becomes loose, causing abnormal noises.

(1) Disconnect the connector.

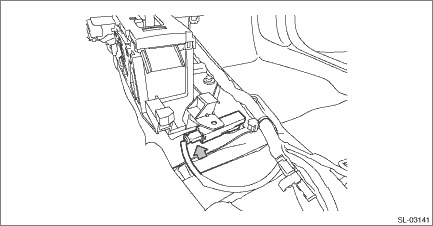

(2) Turn over the floor mat, and remove the center antenna assembly - interior.

3. REAR ANTENNA (SEDAN MODEL)

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the mat - trunk.

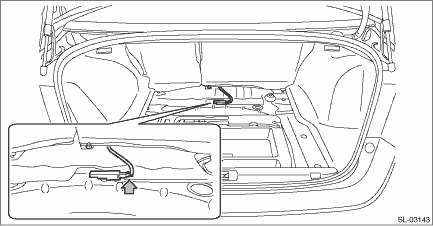

3. Disconnect the connector and remove the rear antenna assembly - interior.

4. REAR ANTENNA (OUTBACK MODEL)

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the spacer - rear floor front.

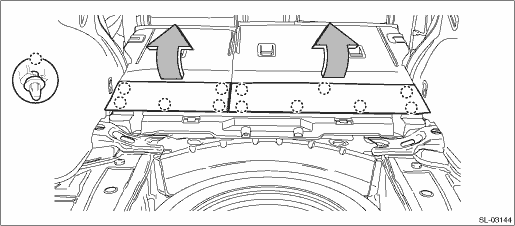

(1) Remove the mat - rear floor RH, mat - rear floor LH, and mat - rear floor CTR.

(2) Remove the spacer - rear floor side RH, spacer - rear floor side LH, and sub trunk assembly.

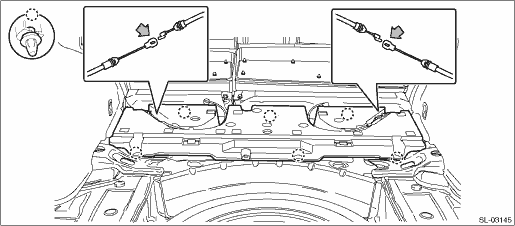

(3) Tilt the backrest assembly forward, and remove the clips located at the bottom of the cover COMPL - rear backrest LH and RH.

(4) Remove the reclining cable, and remove the spacer - rear floor front.

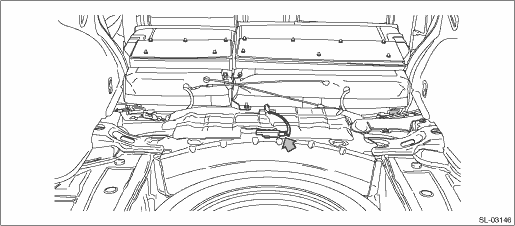

3. Disconnect the connector and remove the rear antenna assembly - interior.

1. Check the setting by performing Keyless access system check using the Subaru Select Monitor. Keyless Access System Check > OPERATION2. Disconnect the Subaru Select Monitor. After placing the acces ...
