Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Transfer clutch / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

3. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

4. Remove the thrust needle bearing and needle bearing.

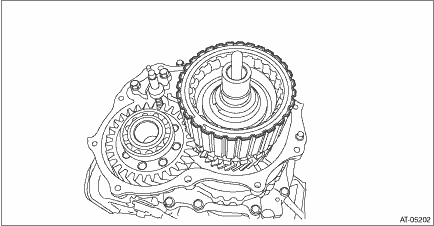

5. Remove the transfer clutch assembly.

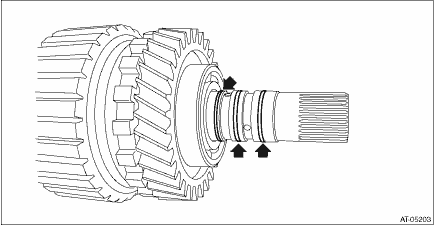

6. Remove the seal ring from transfer clutch assembly.

Adjustment

NOTE:Refer to the Rear Drive Shaft. Rear Drive Shaft > ADJUSTMENT ...
