Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Entertainment / External connection terminal / Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the heater control assembly. Control Panel > REMOVAL

3. Remove the cover assembly - front and the console box assembly. Console Box > REMOVAL

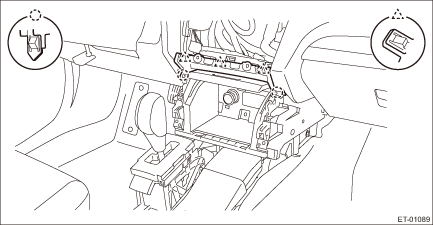

4. Release the claws, and then remove the panel center LWR.

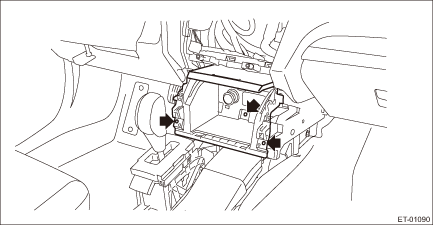

5. Remove the screws and remove the pocket assembly - CTR.

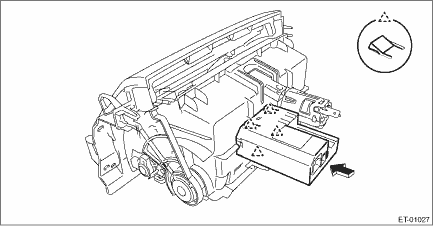

6. While pressing the claw, press it in from the rear to remove the unit assembly - AUX.

1. Install the unit assembly - AUX.2. Install the pocket assembly - CTR.3. Install the panel center LWR.4. Install the cover assembly - front and the console box assembly.Tightening torque:6.5 N&middo ...
