1. FENDER PANEL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the bumper face - front. Front Bumper > REMOVAL

3. Remove the light assembly - head. Headlight Assembly > REMOVAL

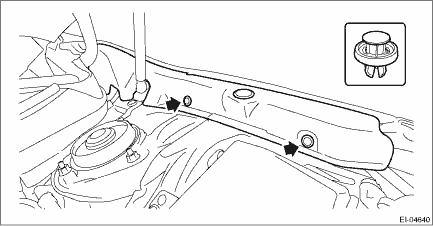

4. Remove the cover - front fender UPR.

(1) Remove the clip.

(2) Release the claws by pulling them forward, and remove the cover - front fender UPR.

CAUTION:

Forcibly removing the part may cause creases.

5. Remove the mud guard - front. Mud Guard > REMOVAL

6. Remove the side garnish assembly. Side Garnish > REMOVAL

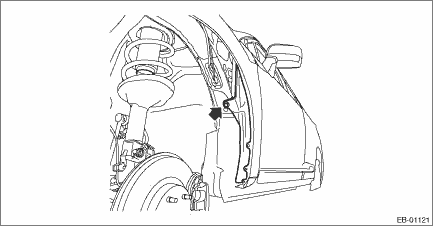

7. Remove the cover - fender LWR.

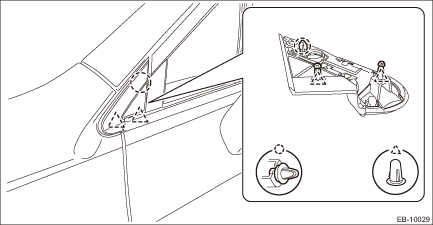

8. Remove the cover - A pillar assembly.

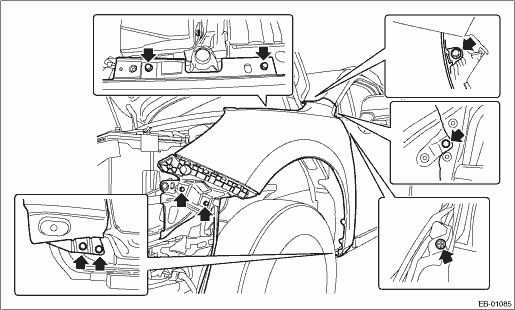

9. Remove the fender COMPL - front.
