Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

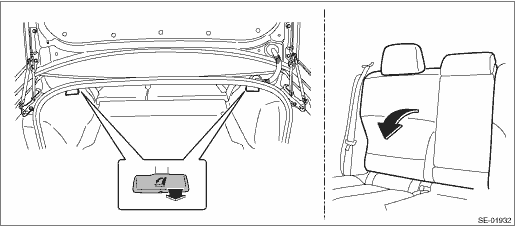

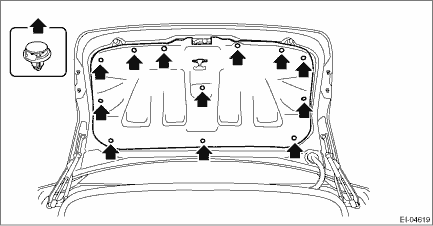

1. Remove the clips, and remove the trim panel - trunk lid.
2. Pull the release lever in the trunk room, and then tilt the backrest forward.

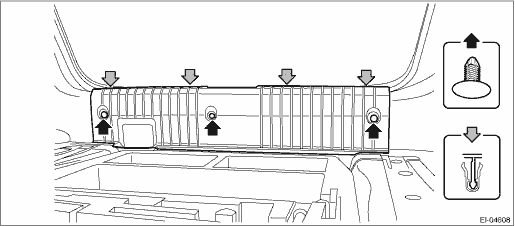

3. Remove the mat - trunk. 4. Remove the trim panel - trunk rear. (1) Remove the clip. (2) Release the claws, and remove the trim panel - trunk rear.

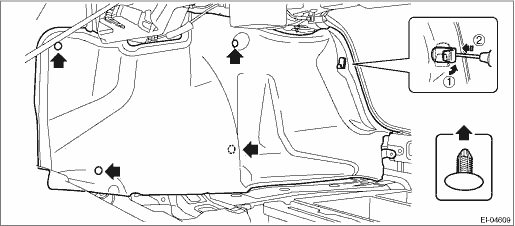

5. Remove the trunk trim panel - side. (1) Remove the hook. (1) Turn the hook to 90°. (2) Press the claw using a screwdriver to detach the hook. (2) Release the clips and remove the trunk trim panel - side.
|
Trunk room trim
...
Installation
1. Install the trim panel - trunk lid.2. Install the trunk room mat.3. Install the trim panel - trunk rear. ...
