Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Hazard switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the center grille assembly. Air Vent Grille > REMOVAL

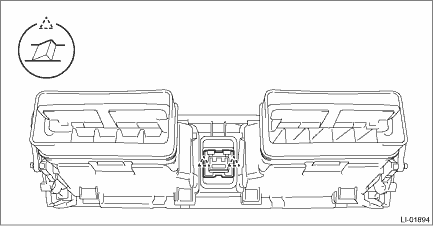

3. Release the claws, and then remove the switch - hazard.
