Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Power rear gate system / Power rear gate inner switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the power rear gate inner switch.

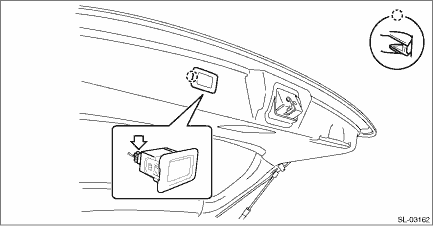

(1) Release the claws and pull out the power rear gate inner switch rearward.

NOTE:

Insert a flat tip screwdriver wrapped with protective tape into the slit on the left.

(2) Disconnect the connector and remove the power rear gate inner switch.
