1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle, and then remove the rear wheels.

3. Remove the sensor assembly - headlight beam leveler. (Model with auto headlight beam leveler) Rear Height Sensor > REMOVAL

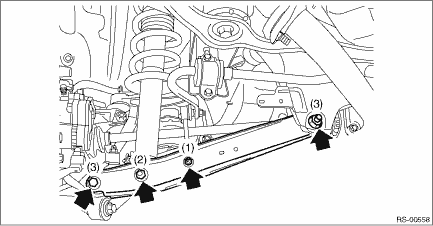

4. Remove the lateral link assembly - rear.

(1) Remove the nut and disconnect the rear stabilizer link assembly.

(2) Remove the bolts and nuts, and remove the lower side of rear shock absorber assembly.

(3) Remove the bolts and nuts, and remove the lateral link assembly - rear.

Assembly

1. Before assembly, inspect the following items and replace any faulty part with a new one.• Visually check the lateral link assembly - rear for damage and deformation.• Visually check the ...
