1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

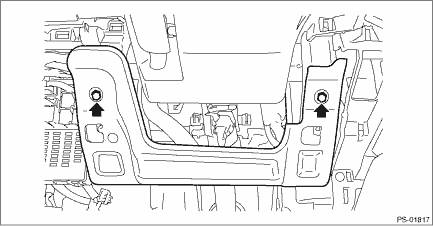

3. Remove the panel - knee guard.

4. Disconnect the body integrated unit (fuse & relay box).

(1) Disconnect the connector.

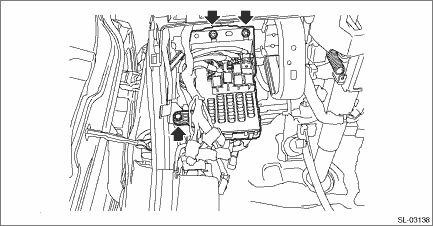

(2) Remove the bolts and nuts, and remove the body integrated unit (fuse & relay box).
