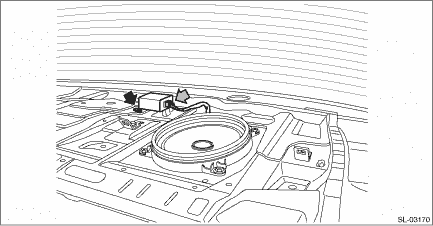

1. SEDAN MODEL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel assembly - rear shelf. Rear Shelf Trim > REMOVAL

3. Remove the keyless entry control module.

(1) Disconnect the connector.

(2) Remove the bolt and then remove the keyless entry control module.

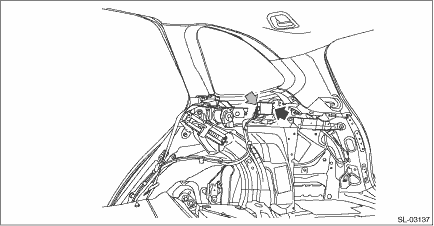

2. OUTBACK MODEL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear apron RH. Rear Quarter Trim > REMOVAL

3. Remove the keyless entry control module.

(1) Disconnect the connector.

(2) Remove the bolt and then remove the keyless entry control module.

Installation

1. SEDAN MODEL1. Install the keyless entry control module.Tightening torque:7.5 N·m (0.8 kgf-m, 5.5 ft-lb)2. Install the trim panel assembly - rear shelf. Rear Shelf Trim > INSTALLATION3. Conn ...
