Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Emission control (aux. Emission control devices)(h4do) / Drain filter / Removal

1. Remove the rear differential. (Sedan model) Rear Differential (VA-type) > REMOVAL Rear Differential (T-type) > REMOVAL

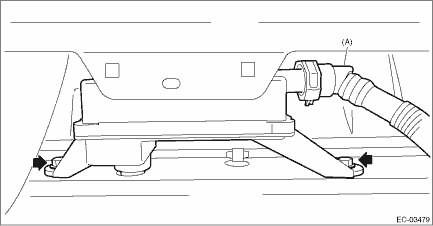

2. Disconnect the drain tube (A) from the drain filter.

NOTE:

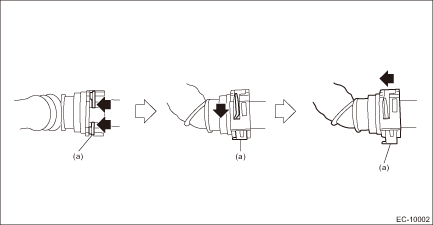

Disconnect the quick connector as shown in the figure.

(a)

Slider

3. Remove the drain filter.

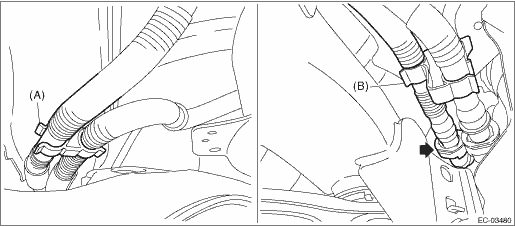

4. Disconnect the drain tube, and remove the drain tube from tube clamp (A) and tube clamp (B).

NOTE:

Disconnect the quick connector as shown in the figure.

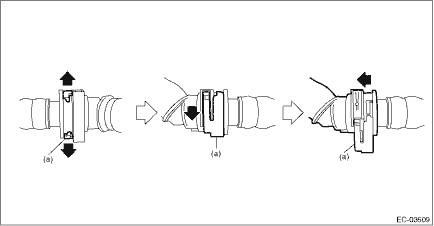

• Color of the slider is either red or green

(a)

Slider

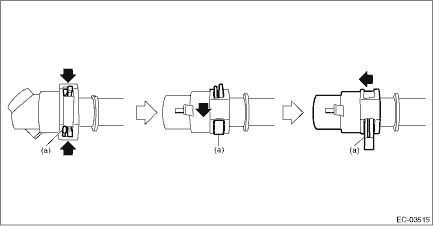

• Color of the slider is white

(a)

Slider

Inspection

1. Check that the drain filter and drain tube have no deformation, cracks or other damages.2. Check that no foreign substances are clogged in the drain filter. ...
