Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Seats / Power seat system / Removal

CAUTION:

When removing the front seat, disconnect the ground cable from the battery before disconnecting the airbag system and the occupant detection system harness connector, and wait for 60 seconds before starting the operation.

1. POWER SEAT SWITCH

1. Remove the seat from vehicle. Front Seat > REMOVAL

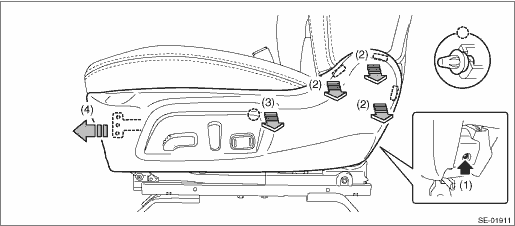

2. Remove the cover - hinge front seat OUT.

(1) Remove the screws in the rear section of the cover - hinge front seat OUT.

(2) Release the claw in the upper section of the cover - hinge front seat OUT.

NOTE:

Use a plastic clip remover.

(3) Remove the clip in the center of the cover - hinge front seat OUT.

(4) Release the claw in the front section of the cover - hinge front seat OUT, then remove the cover - hinge front seat OUT.

(5) Disconnect the power seat switch and lumber switch connector and remove the cover - hinge front seat OUT.

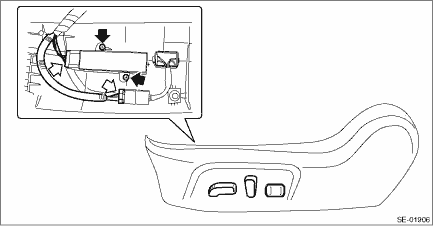

3. Remove the switch assembly - power seat.

(1) Disconnect the connectors for power seat switch and lumbar switch.

(2) Remove the knob - power seat.

(3) Remove the screws to remove the switch assembly - power seat.

(4) Remove the switch assembly - lumber. (Model with lumber support)

2. SEAT MEMORY SWITCH

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the trim panel - front door. Door Trim > REMOVAL

3. Release the claws, and remove the seat memory switch assembly.

3. POWER SEAT CONTROL MODULE (SEAT WITH MEMORY FUNCTION)

1. Raise the seat cushion by operating the switch.

2. Remove the front seat from the vehicle.

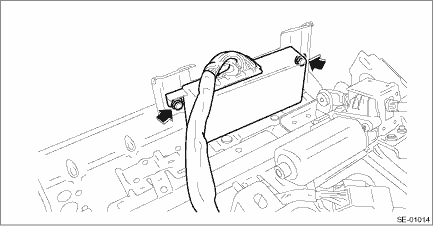

3. Remove the power seat control module.

(1) Release the hooks on seat front and turn over the cushion cover.

(2) Remove the nuts, and remove the power seat control module.
