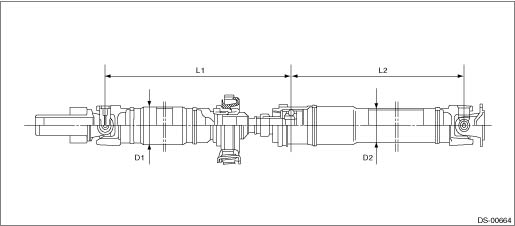

1. PROPELLER SHAFT

Model			All models
Propeller shaft type			EDJ
Front propeller shaft joint-to-joint length: L1	mm (in)	CVT (TR580)	675.5 (26.59)
		CVT (TR690)	578 (22.76)
		6MT	735.5 (28.96)
Rear propeller shaft joint-to-joint length: L2		mm (in)	828 (32.6)
Outer diameter of tube:	mm (in)	D1	63.5 (2.500)
		D2	57.5 (2.264)

2. FRONT DRIVE SHAFT ASSEMBLY

Model	Type of drive shaft	Axle diameter φ mm (in)	Axle length mm (in)
2.5 L sedan and OUTBACK 6MT model	EBJ + PTJ	22 (0.87)	381.2 (15.01)
Other than above	EBJ + PTJ	22 (0.87)	366.8 (14.44)

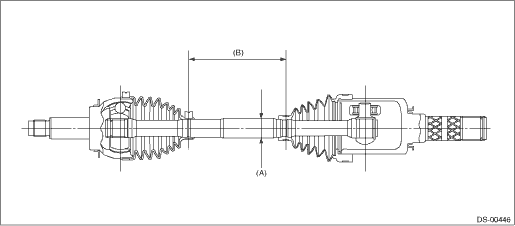

(A)

Axle diameter

(B)

Axle length

3. REAR DRIVE SHAFT ASSEMBLY

Model	Type of drive shaft	Axle diameter φ mm (in)	Axle length mm (in)
2.5 L CVT model	BJ + DOJ	22 (0.87)	420.8 (16.57)
Other than above	EBJ + DOJ	22 (0.87)	409.7 (16.13)

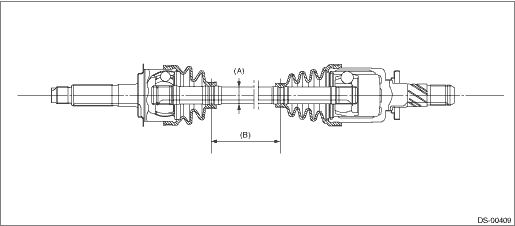

(A)

Axle diameter

(B)

Axle length
