Subaru Legacy BN/BS (2015-2019) Service Manual: Component

Subaru Legacy BN/BS (2015-2019) Service Manual / Speed control systems(h4do) / General description / Component

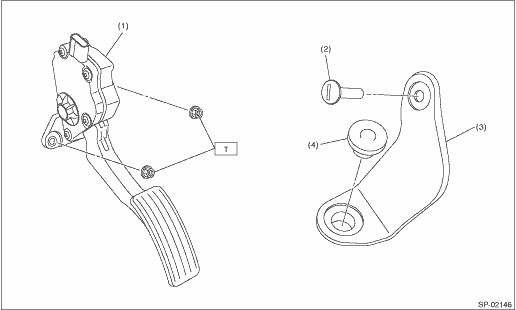

(1)	Accelerator pedal ASSY	(3)	Accelerator plate	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Clip	(4)	Accelerator stopper	T:	7.5 (0.8, 5.5)

Preparation tool

1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS18460AA050CHECK BOARDUsed for inspecting the accelerator pedal. — (Newly adopted tool)SUBARU SELECT MONITOR 4Used for setting of each function ...
