Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Oil temperature sensor / Inspection

1. Check that the oil temperature sensor has no deformation, cracks or other damages.

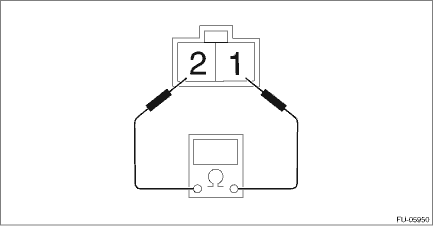

2. Check the resistance between the oil temperature sensor terminals.

Terminal No.	Standard
1 and 2	Approx. 2.45±0.2 k- (when 20°C (68°F))

Removal

1. Remove the collector cover.(1) Carefully pull up the rear of collector cover at two positions (A).(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.2. ...

Installation

1. Install the oil temperature sensor to the cylinder block, and connect the connector to the oil temperature sensor.Tightening torque:18 N·m (1.8 kgf-m, 13.3 ft-lb)2. Connect the ground termin ...
