Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Oil temperature sensor / Removal

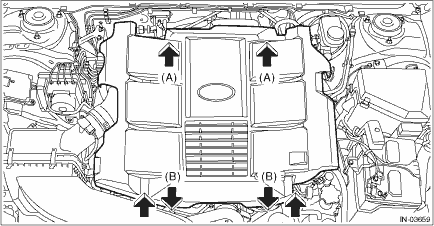

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

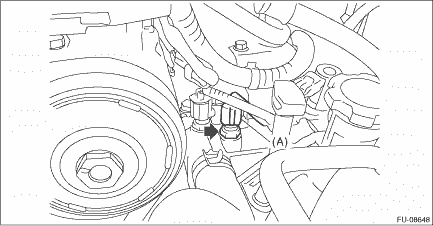

3. Disconnect the connector (A) from the oil temperature sensor, and remove the oil temperature sensor from the cylinder block.

1. Check that the oil temperature sensor has no deformation, cracks or other damages.2. Check the resistance between the oil temperature sensor terminals.Terminal No.Standard1 and 2Approx. 2.45±0.2 k ...
